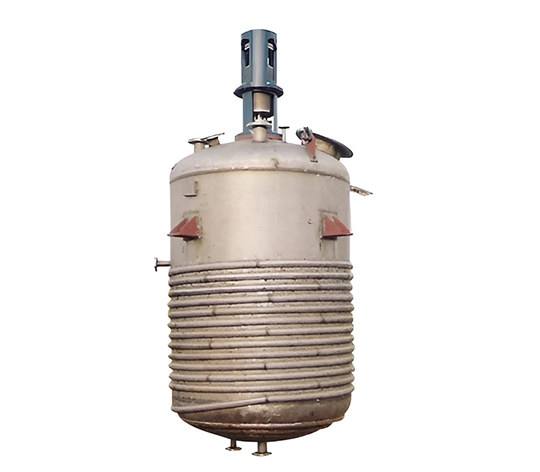

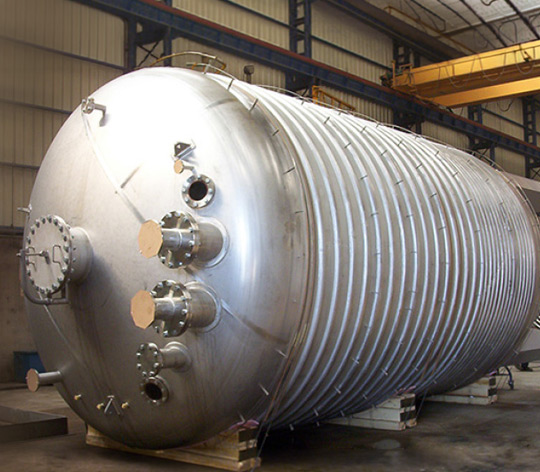

Product Single
Reactors & Agitators
We design and manufacture a wide range of agitators that lower energy consumption, increase yield and reduce batch times.
The elements involved in the mixing process, their homogenization, appropriate forces at action, etc. are important aspects while building the right agitator. The efficiency of these also depend on the choice of impellers.
Applications of agitators
-
Homogenizing solutions and suspensions:Manufacturers use agitators to break down large particles and disperse them evenly in liquid or mixture for uniform consistency. This is critical for achieving a smooth texture and preventing the separation of components.
-
Uniform mixing:Agitators maintain a constant motion in the mixture, preventing solids from settling down or the formation of concentration gradients, and ensuring even distribution of all components.
-
Dispersing Gases:Agitators are essential for dispersing gases into liquid solvents, creating a stable dispersion or solution. This is crucial for processes like the aeration of beverages, the oxygenation of wastewater, and the production of emulsions.
-
Promoting chemical reactions:Agitators enhance chemical reactions by bringing reactants into close contact, accelerating the reaction rate, and improving the efficiency of chemical processes.
-
Maintaining consistent temperature:Agitators facilitate heat transfer within vessels, ensuring uniform temperature distribution and preventing localised hot spots or cold zones.
-
Enhancing heat transfer to jackets:Agitators promote heat transfer from jackets to liquid mixtures by increasing the surface area available for heat exchange.
Industries using reactors-agitators
| Industry | Type of agitator Used | Why is it used? |
|---|---|---|

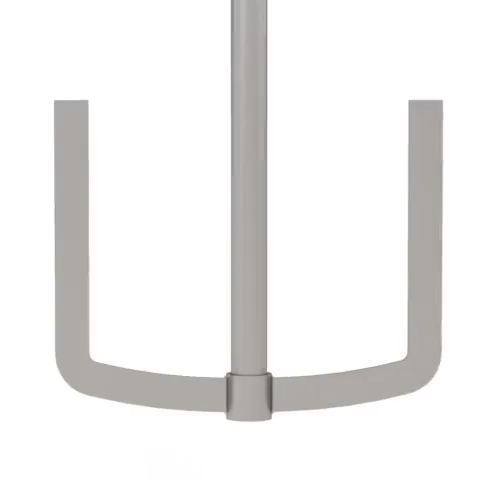

| 1.Speciality Chemicals | Anchor type | Used where the process required both pumping and shearing action |
| 2. Fertiliser | Pitch blade turbine type | Efficient turbulent flow, Used for Blending and suspending solids applications, |

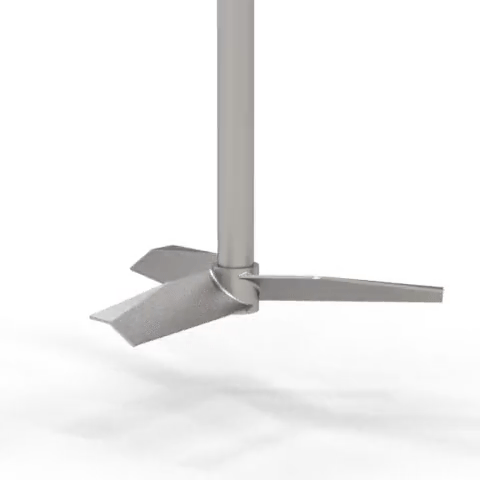

| 3. Pharmaceuticals | Narrow-blade Hydrofoil | Used where the process required both pumping and shearing action |
| 4. Dyes & Pigments | Double Helix | Generally operates at slow speed, Used for homogenisation & heat transfer applications, high viscous liquids |
| 5. Food & beverages | Paddle Type | General purpose, economical type, low viscous mixing, basic applications |

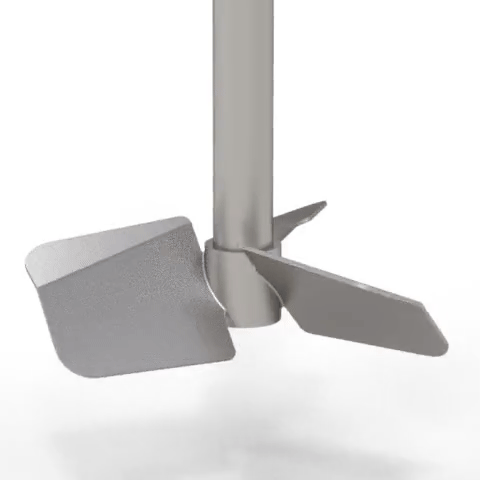

| 6. Paints & Polymers | Wide-blade Hydrofoil | Efficient turbulent flow, Used for Blending and suspending of solids applications, |
| 7. Adhesives | ||
| 8. Power | ||
| 9. Paper & Pulp etc. |
